TopSpeed Universal Roof Mount System

The SnapNrack TopSpeed® Universal Mounting System (formerly RL Universal) is engineered for the fastest, most intuitive roof installation. With just four basic components—none larger than a PV module—it simplifies material management and ensures a smooth install.

Key features include:

• Integrated Skirt for secure, sleek installation

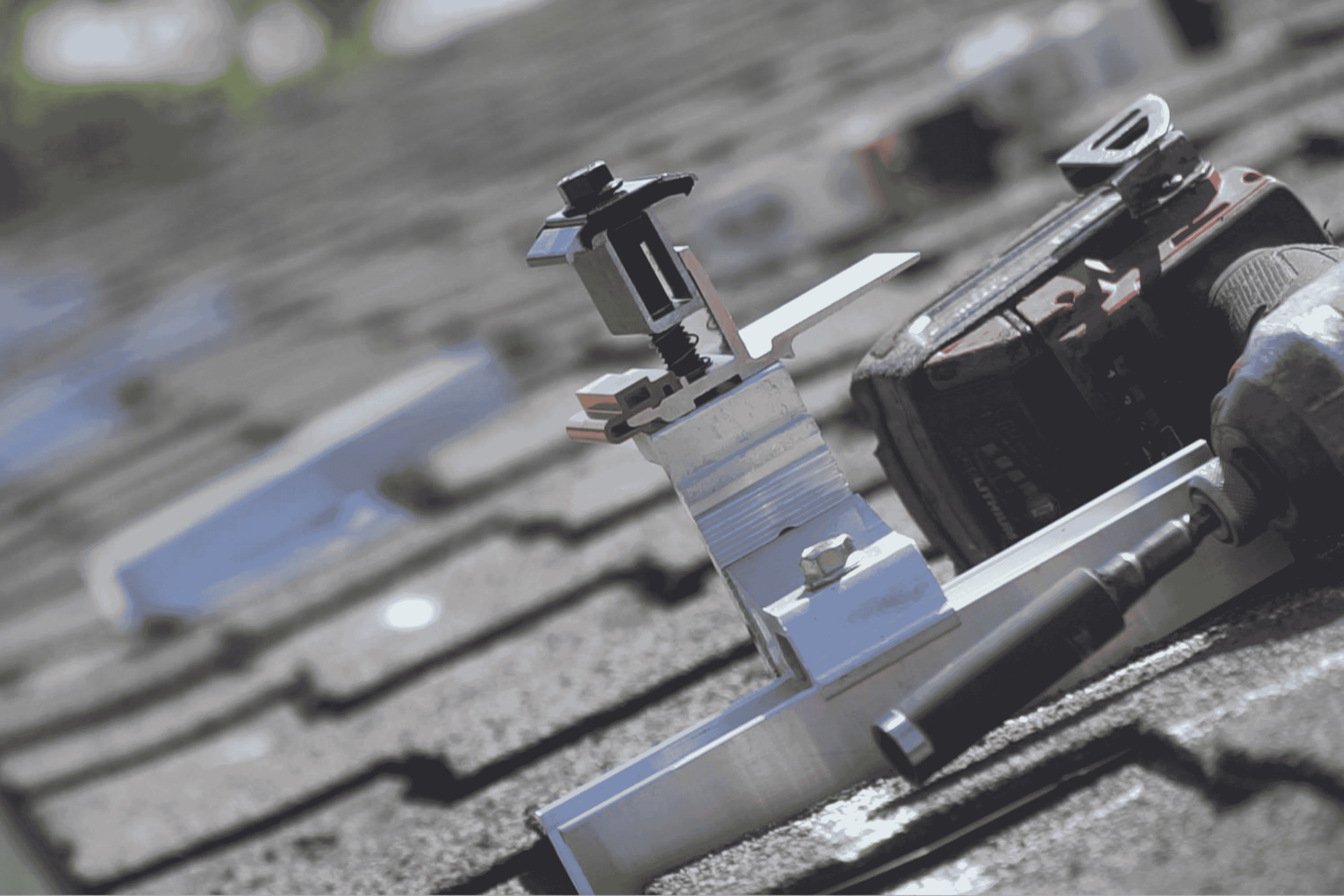

• Universal Mounts that fit module heights from 30mm to 40mm
• Links that accommodate 2 to 4 modules, with 2 1/2" Mount offset and 5 1/4" Link adjustability to eliminate interference
• Unmatched Spans in any rail-less system, reducing installation time and labor costs

SnapNrack's TopSpeed Universal System also brings the industry’s best wire management solutions to the rail-less market. Features like Smart Clips secure wires within module frames, while Wire Savers provide quick, secure management after module installation. The system is completed with a track-mounted L Foot and Junction Box solution for full wire management.

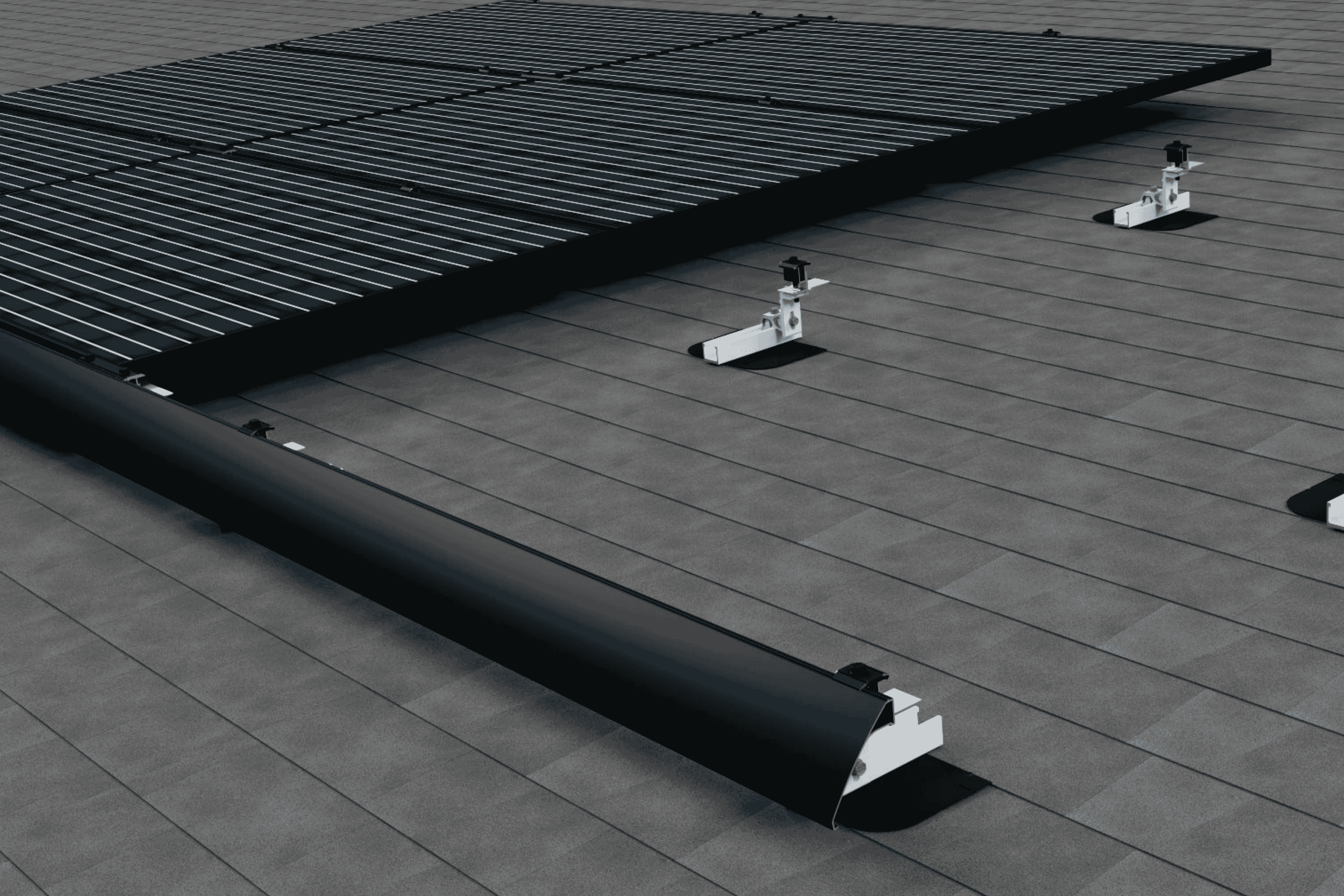

• The Universal Skirt creates strong structure for leveling and alignment of first row of modules.
• Compatibility with three (3) SnapNrack roof attachment sealing technologies.
• NEW! AlphaTrack™ & DeltaTrack™ feature SpeedSeal™+ Technology, a pre-installed butyl pad for easy peel & stick installation.
• SpeedSeal™ Track with Patented SpeedSeal™ Technology has an innovative design incorporates flashing reliability into a single roof attachment
• Flash Track with Patented Umbrella Seal Technology features a single Umbrella lag screw secures flashing & Flash Track to roof in one step
• Module Links accommodate 2 to 4 modules while providing row-to-row bonding, and feature 5 1/4″ of adjustability to avoid interferences.
• Mounts accommodate PV-modules from 32-40mm, simplifying material logistics in the warehouse and on the roof
• SnapNrack TopSpeed Universal Mounts feature an exclusive 2 1/2″ offset which combines with the Link adjustability to create a system that eliminates use of specialty mounts or disassembly on the roof.
